12/11/11 - Milano's exhibition

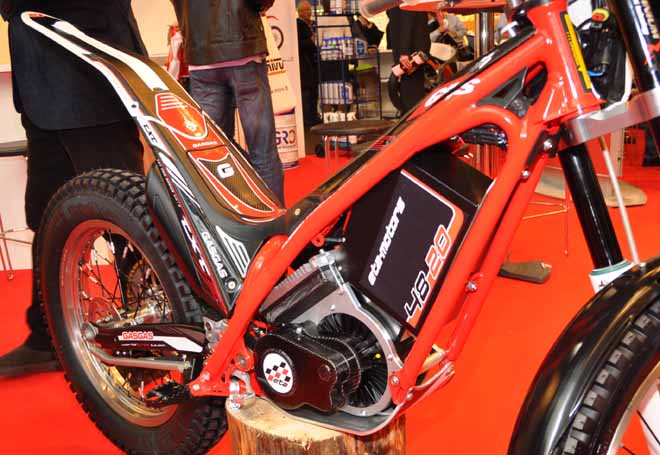

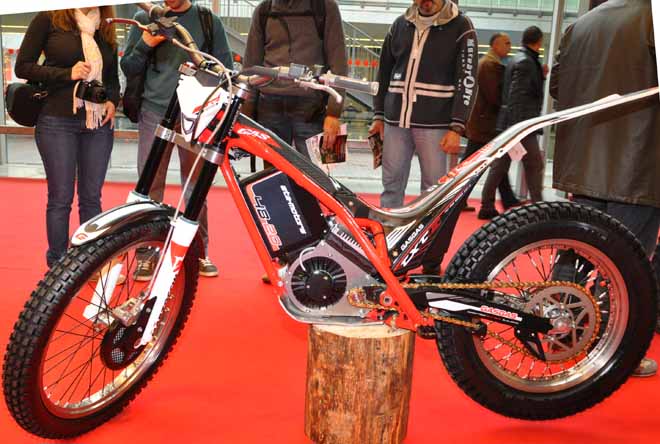

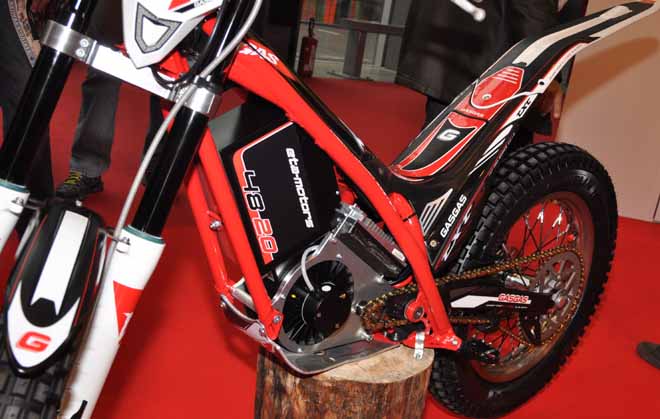

Electric Gas GAS, ridden by Adam Raga.

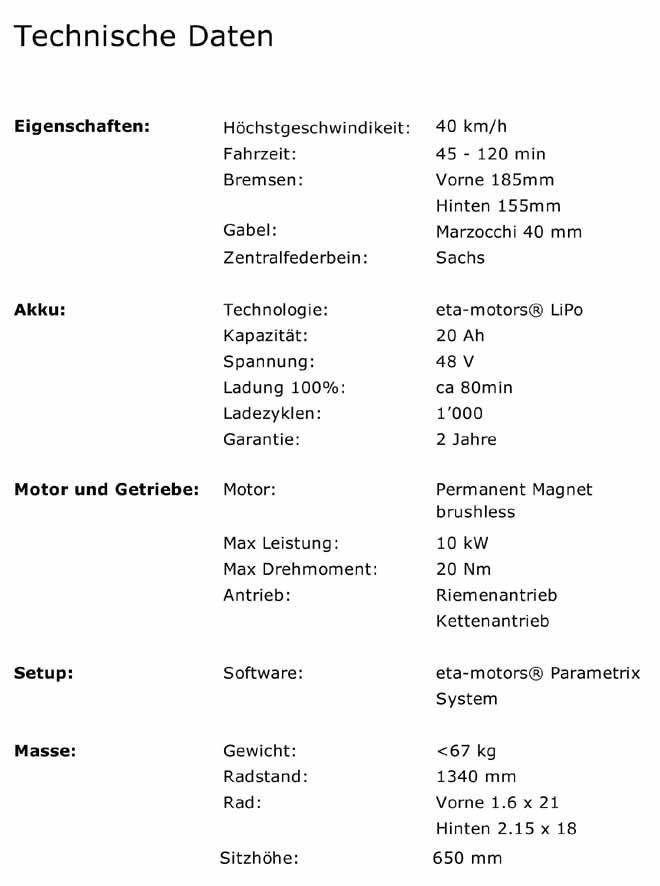

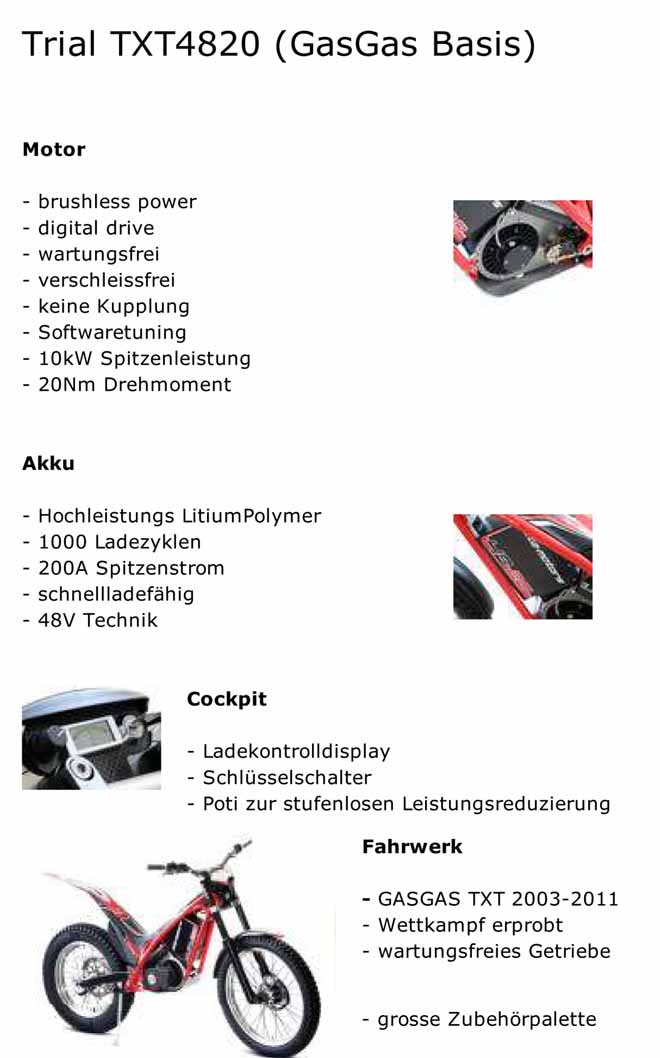

The other info and technical specs are only in German at the moment, because the engine is provided by German Eta-Motors ( www.eta-motors.com).
English version is coming very soon.

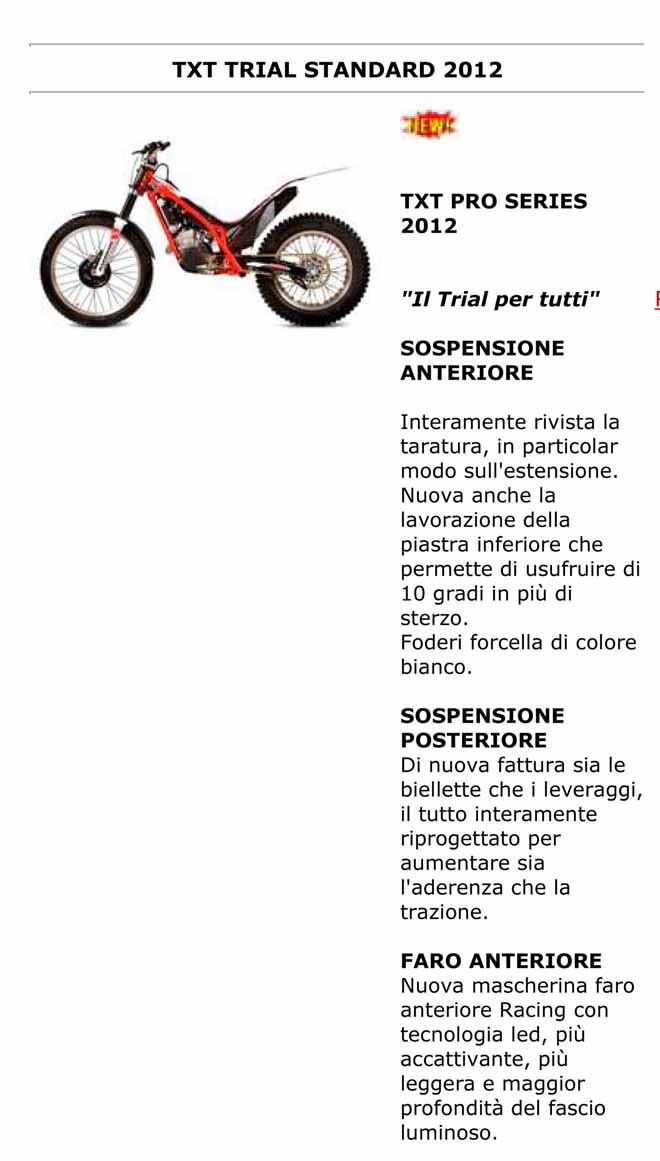

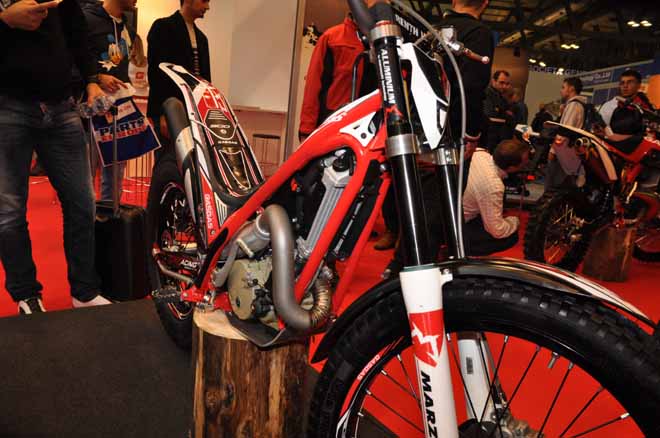

About the TXT PRO2012, here are the modifications:
•New lower triple-clamp with 10 degrees more turning radius
•New rear suspension link
•New rear shock linkage with a new spring
•New chain and sprocket protectors from the Raga Replica
•Improved airbox sealing to prevent water intrusion
---------------------------------------------------------------------------------------
Il Salone di Milano
La GAS GAS elettrica guidata da Adam Raga.
Per ora le specifiche tecniche solo solo in tedesco, perche' il motore viene fornito dalla ditta tedesca Eta-Motors ( www.eta-motors.com).
A presto la traduzione.

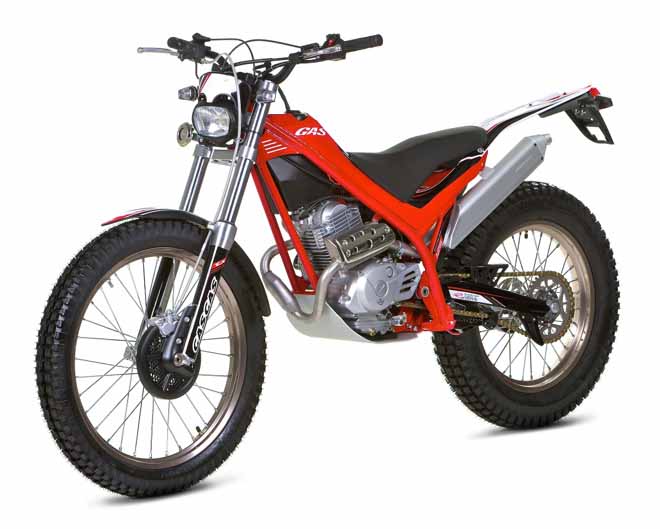

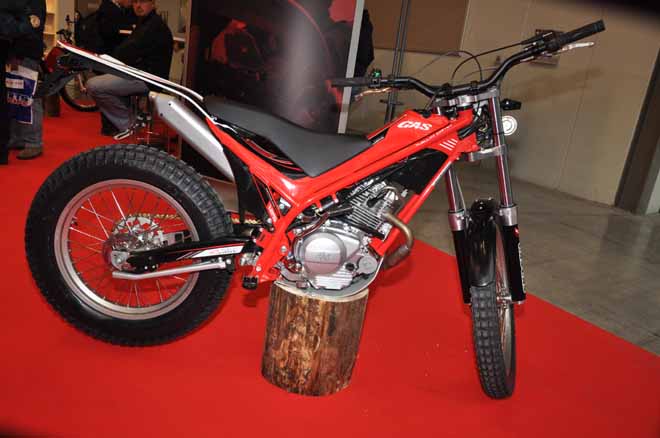

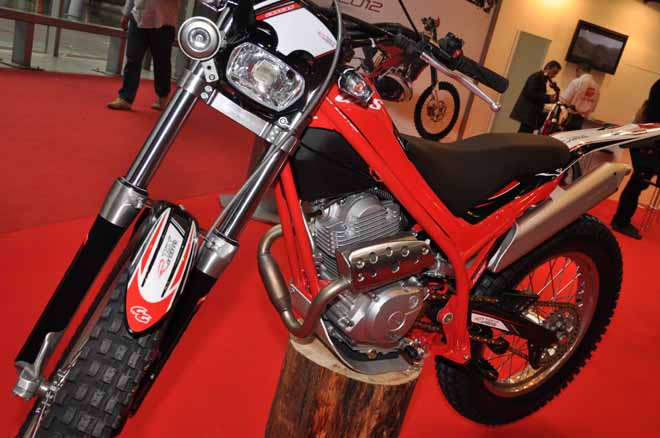

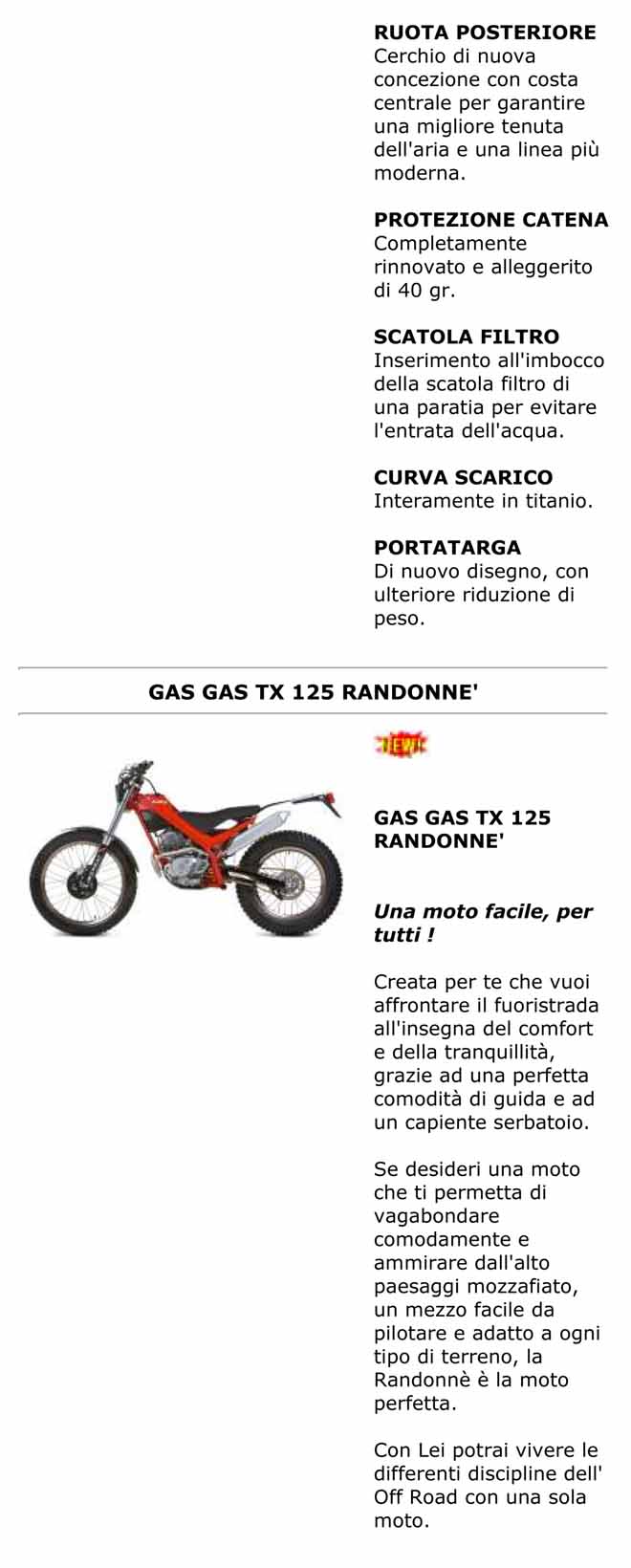

Sui modelli TXT PRO e RANDONE' pubblichiamo quanto presente sul sito Gas Gas Italia.

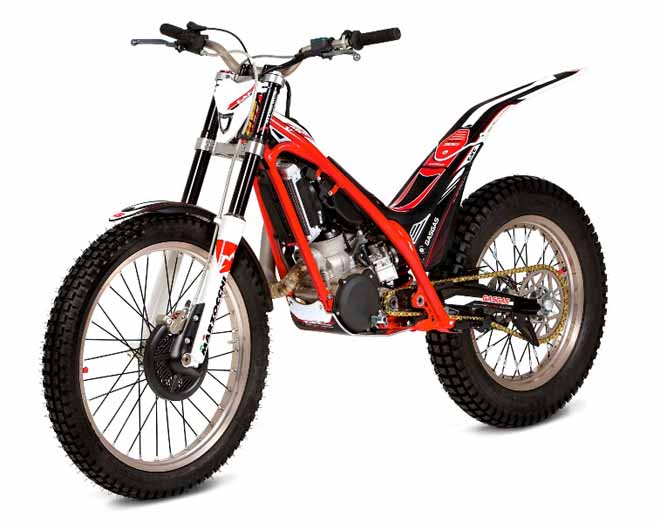

TXT 300 PRO |
|
|---|---|

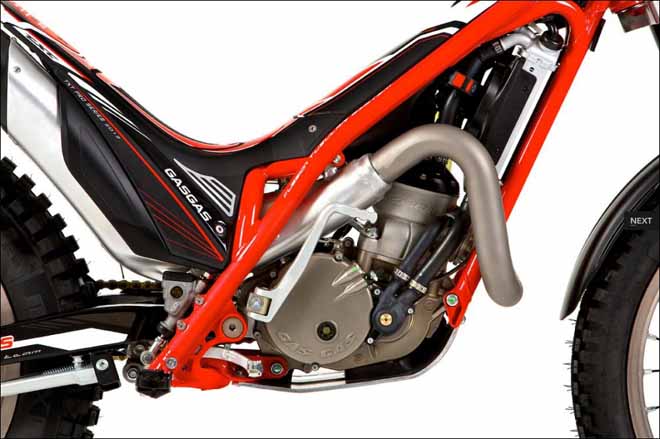

Engine |
Single-cylinder 2-stroke, liquid cooled |
Displacement |
294,1 cc |
Bore x stroke |
79 x 60 mm |
Gearbox |
6 speed gearbox with GG 4/6 technology |
Clutch |
GG 1/3 hydraulic-diaphragm-system |
Carburettor |
Dell'Orto PHBL26BS - Intake by reed valve |
Frame |
Chrom-Molybdenum tubular frame |
Swingarm |
Aluminium, Progressive linkage system |
Front fork |
Marzocchi 40 mm Aluminium Right-Sight-Up, 177 mm travel |
Adjustability |
Adjustable compression and rebound |
Shock absorber |
Sachs hydraulic mono shock absorber |
Adjustability |
Adjustable rebound and spring preload |
Suspension travel |
164 mm rear wheel travel |
Rim type |
Light aluminium spoke rim |
Rim - tyre |
Front: 1.6 x 21 - Michelin Trial 2.75 x 21 |
Rim - tyre |
Rear: 2.15 x 18 - Michelin Trial 4.00 x 18 TL |
Front brake |
185 mm floating, 4-piston caliper |
Rear brake |
150 mm disc, 2-piston caliper |
Fuel |
2,5 lt (2-stroke-oil/fuel mixed 1:50) |
Dry weight |
67 kg |
Dimensions |
Length x width x height: 2.045 x 825 x 1.130 mm |
Wheelbase |
1.340 mm |
Seatheight |
650 mm |
